High Strength Sucker Rod
High Strength Sucker Rod

Imbaraga Zinini Zinywa

API 11B Yubahiriza: Yakozwe kuri API Spec 11B, yemeza ibipimo bya peteroli ku isi.
Ingano yubunini: 5/8 ″ - 1-1 / 8 ″ OD; uburebure bwa metero 25, inkoni ya pony 2–12 ft.
Impamyabumenyi Zikomeye: H, HY, hamwe nudusanduku twihariye twa alloy amanota aremereye - umutwaro hamwe namariba yangirika.
Imbaraga zisumba izindi: Imbaraga zingana kugeza Zirenze cyangwa zingana na 150.000 psi kumariba maremare no kuvoma cyane.
Kunanirwa kunanirwa kunanirwa: Byagenewe imitwaro ya cycle, kugabanya kunanirwa kwinkoni mugusaba amariba.
Kurinda ruswa: Kuvanga ibyuma + gutwikiriye kubushake bwa CO₂ / H₂S ibidukikije.

Kohereza iperereza

Gukuramo

Intangiriro y'ibicuruzwa

Incamake y'ibicuruzwa

Imbaraga Zinini Zinyobwa zateguwe muburyo bwihariye bwo gusaba ibikorwa bya peteroli aho inkoni zisanzwe zishobora kunanirwa kubera imitwaro iremereye cyane, kwangirika, cyangwa umunaniro. Yakozwe muburyo bukurikije API Spec 11B, izi nkoni zifata ibyuma bya premium alloy ibyuma, ubushyuhe buhanitse -, hamwe nubuhanga bwo kurangiza hejuru kugirango bugere ku mbaraga zidasanzwe, ubukana, nubuzima bwa serivisi.
Zikoreshwa cyane mumariba maremare, hejuru - sisitemu yo gupompa imizigo, hamwe nibidukikije byangirika, bigatuma bahitamo neza kubakoresha bashaka ibisubizo byizewe kandi byigiciro - ibisubizo byubaka byubaka.

Ibikorwa byo Gukora & Ikoranabuhanga

Ibikoresho bito:Hejuru - ubuziranenge bwa alloy ibyuma hamwe na karubone nziza, chromium, hamwe na molybdenum.
Kuvura ubushyuhe:Kuzimya no kwitonda kugirango ugere kuri microstructure imwe no kunoza ubukana.
Ubukonje bukora & Kugorora:Iremeza neza ibipimo kandi bigabanya imihangayiko isigaye.
Kuvura Ubuso:Amahitamo arimo guturika kurasa, gufunga fosifate, cyangwa gutera - icyuma kugirango cyongere imbaraga zo kwambara.

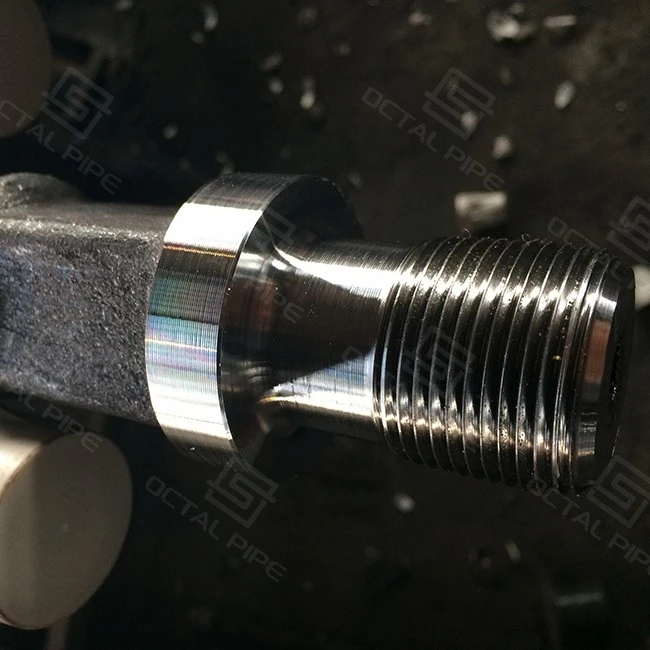

Urudodo & Guhuza:Icyitonderwa - cyakozwe na API - insanganyamatsiko zisanzwe hamwe Urwego T cyangwa SM guhuza.

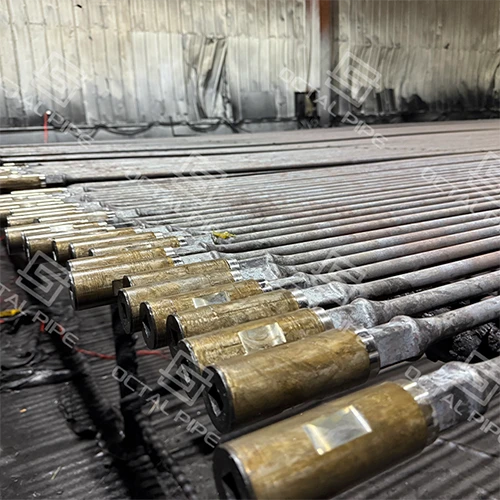

high strength sucker rod API 11B for rod lift pumping systems API 11B grade D high strength sucker rod heat treated alloy steel

Ingano & Impamyabumenyi

Diameter yo hanze (OD):5/8 ″ - 1-1 / 8 ″ (16 mm - 32 mm)
Uburebure:25 ft (bisanzwe), inkoni ya pony iraboneka 2–12 ft
Amanota:

H Icyiciro:Imbaraga zingana cyane, rusange - imizigo iriba
HY Grade:Kongera umunaniro ukabije kumitwaro ya cycle
Amavuta adasanzwe:Inkoni yihariye hamwe na Cr / Mo yo hejuru yo kurwanya ruswa

Ibyiza by'ingenzi

Imbaraga zisumba izindi:Imbaraga zingana kugeza Ziruta cyangwa zingana na 150.000 psi, zibereye ultra - amariba maremare.
Kurwanya umunaniro mwinshi:Yashizweho kugirango ibintu bishoboke, kugabanya inkoni yananiwe.
Kurwanya ruswa:Kuvanga no kuvura kubutaka bitezimbere ubuzima bwiza mumariba ya CO₂ / H₂S.
Ibipimo bifatika:Kugenzura kwihanganira gukomeye bituma imikorere ikorwa neza.
Ubuzima bwagutse bwa serivisi:Inshuro yo kunanirwa inshuro igabanya amafaranga yo gukora.

Porogaramu

Iriba ryimbitse rifite ubujyakuzimu burenga m 3000
Umusaruro uremereye usaba imizigo minini yo kuvoma
Ibidukikije byangirika hamwe na CO₂ nyinshi cyangwa H₂S
Iriba ryatandukanijwe cyangwa itambitse hamwe nibibazo bigoye

Ubwishingizi bufite ireme

Imbaraga zose zo mu bwoko bwa Sucker Rods zakozwe muburyo bwa API 11B, hamwe na 100% NDT (ultrasonic, magnetique igenzura) hamwe no kugenzura imitungo ya mashini (tensile, ingaruka, ubukana). Buri cyiciro gishobora gukurikiranwa nicyemezo cyikizamini (MTC) kandi gishobora gutegurwa ukurikije ibyifuzo byabakiriya.

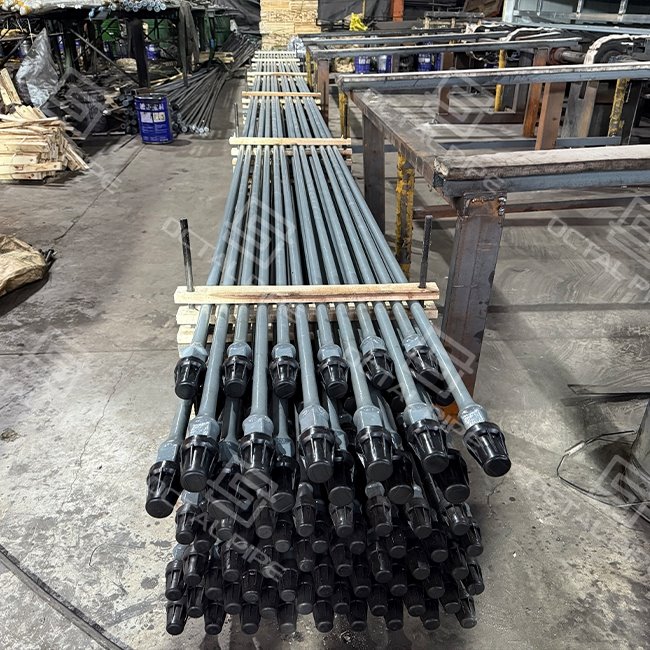

high-strength alloy steel sucker rods stacking display
